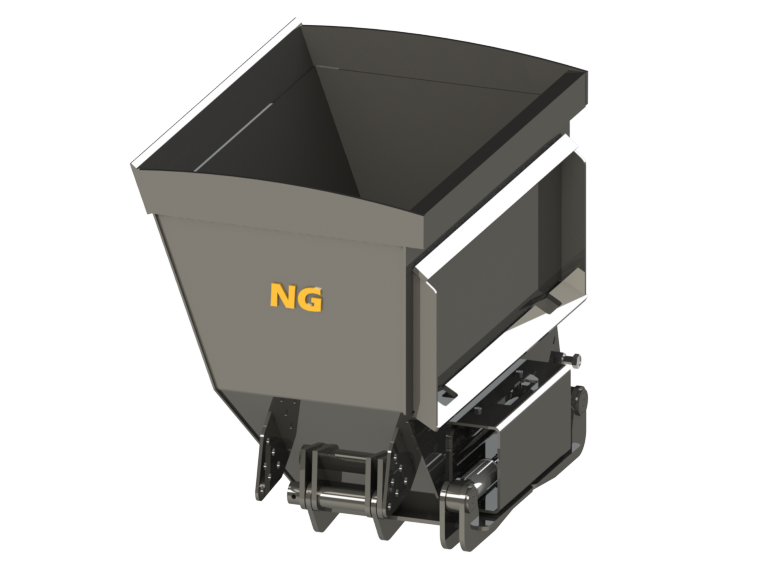

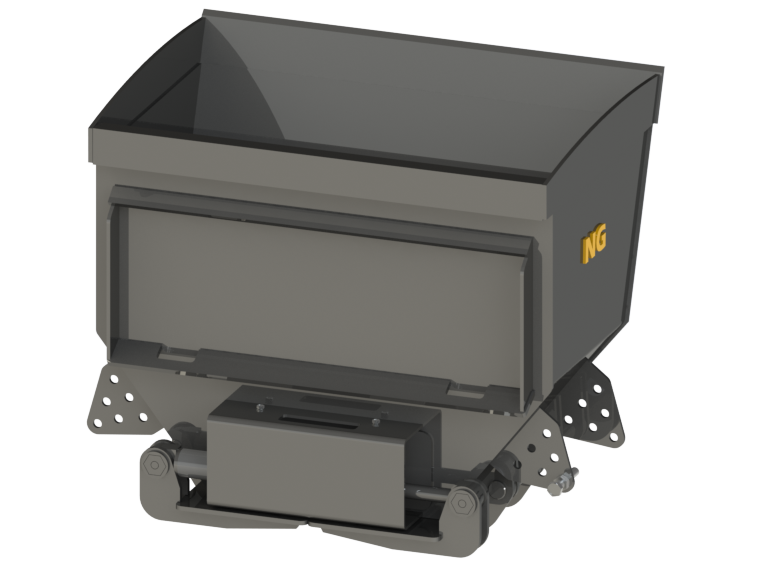

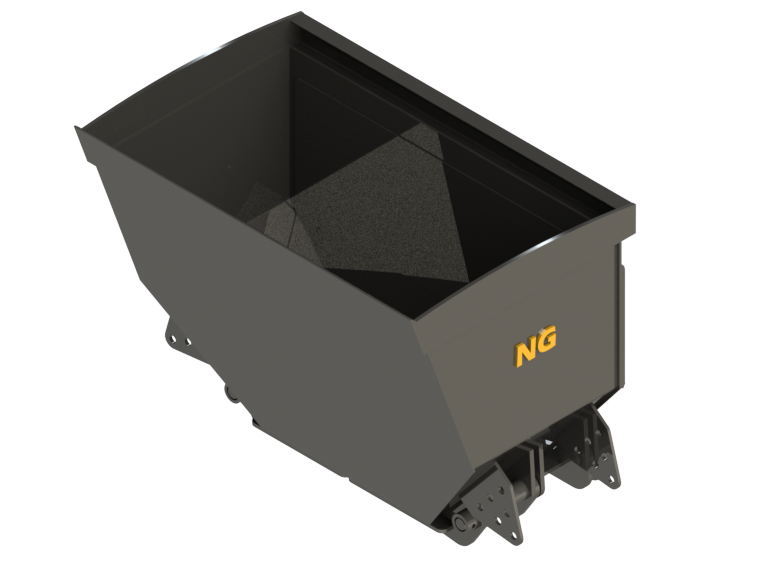

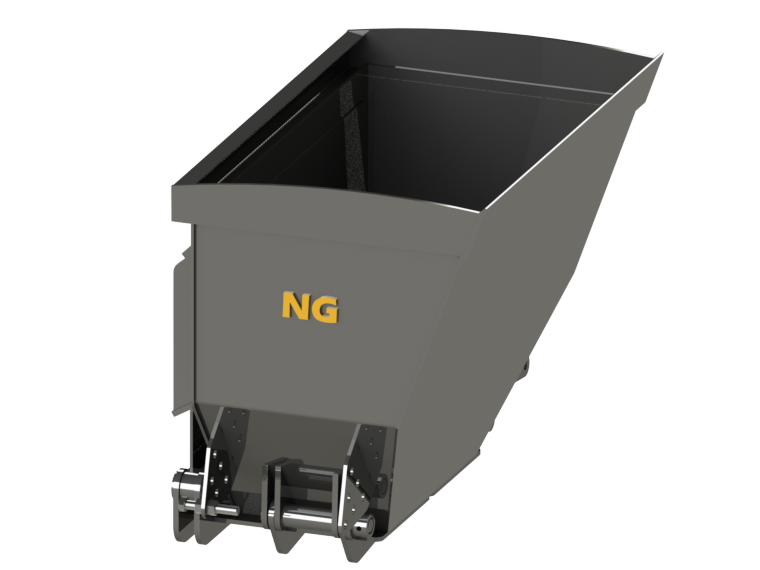

BIG BAG BUCKETS – Innovative Bag Filling Bucket with Bolt-On Door System

BIG BAG BUCKETS from NG Attachments are innovative bag filling buckets developed for safe and controlled filling of sleeve big bags with sand, gravel, aggregates, pellets and other bulk materials. The bolt-on door system allows the operator to load and discharge material in a precise way, minimising dust, spillage and downtime in concrete plants, material yards and industrial facilities.

All BIG BAG BUCKETS are designed and manufactured in Türkiye (Made in Türkiye) according to European quality standards. The range includes standard density models with S275 shells and high-density versions with HARDOX wear plate, with water-level capacities from 0.6 m³ up to 2.0 m³. The fixed 450 × 450 mm outlet opening fits common sleeve bags, while the bolt-on door and optional bolt-on cutting edge provide excellent service life and easy maintenance.

Efficient big bag filling for plants, quarries and material depots

BIG BAG BUCKETS are an ideal solution for concrete batching plants, dry-mix plants, mining and quarry operations, agricultural producers and logistics terminals handling bulk bags. Mounted on a wheel loader or telehandler, the operator can scoop material from a stockpile and fill one or two big bags from the same machine, without additional conveyors or fixed hoppers. This reduces installation cost, improves flexibility and keeps the loading area compact and mobile.

Key advantages of NG BIG BAG BUCKETS

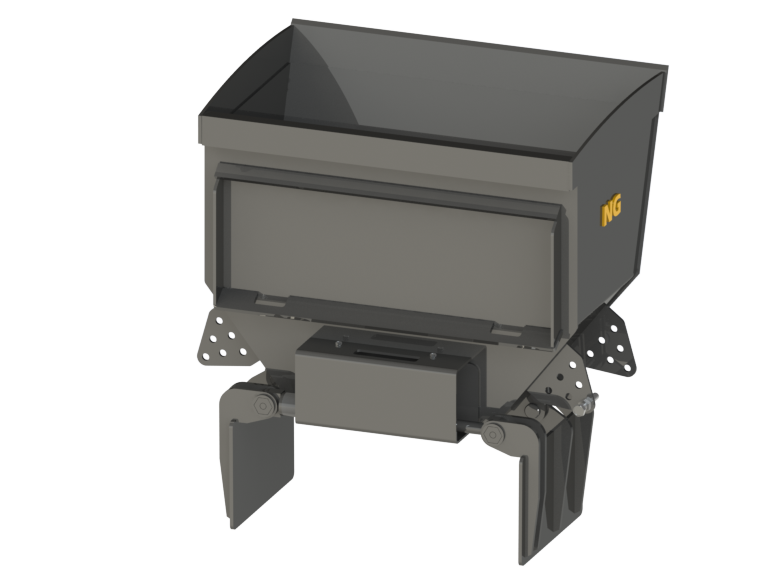

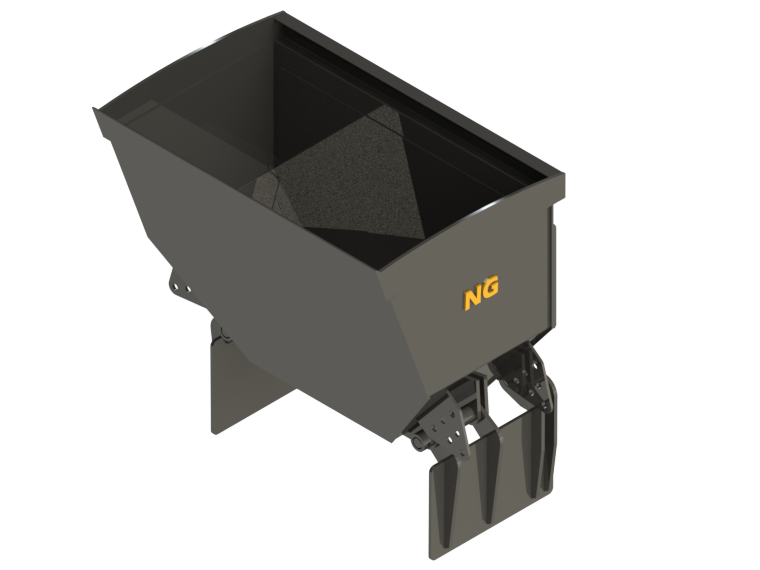

• Innovative bolt-on door system for controlled discharge and clean bag filling.
• Standard and high-density versions with S275 and HARDOX shells for demanding materials.
• Common outlet opening 450 × 450 mm matched to sleeve type big bags.
• Optional bolt-on cutting edge to extend bucket life and simplify maintenance.
• Capacities from 0.6 to 2.0 m³ to suit small loader fleets up to heavy wheel loaders.
• Suitable for aggregates, sand, fertiliser, pellets and other bulk products.
• Custom mounting options for different loader, telehandler or tractor-front-loader interfaces.

Typical use cases and safety benefits

With BIG BAG BUCKETS, the operator does not need to stand beneath a suspended bag or work close to an open hopper. The bucket keeps the material enclosed until the bag neck is positioned, then the door is opened to start filling. This setup improves safety, reduces dust in the working area and cuts the time needed to load each big bag, especially when loading multiple products or different densities through the same machine.

FAQ – BIG BAG BUCKETS

---

Typical carrier machines – examples of brands and models for BIG BAG BUCKETS:
CAT 906, 907, 908, 910, 918, 926M, 930M, 938M wheel loaders · Volvo L30G, L35G, L45H, L50H, L60H, L70H, L90H · JCB 407, 409, 413S, 417, 427, 437 wheel loaders and Loadall telehandlers 531-70, 532-70, 535-95 · Komatsu WA70, WA80, WA100, WA150 · Liebherr L506, L508, L509, L514, L518, L524 · CASE 321F, 521G, 621G, 721G · New Holland W80, W110, W130, LM telehandlers · John Deere 304L, 324L, 344L, 444, 524, 624 · Bobcat T35.105, T40.180, TL38.70 telehandlers and compact loaders · Manitou MLT 625, MLT 733, MT 932, MT 1440 · Merlo P32.6, P35.11, TF33.7, TF38.10 · Claas Scorpion 635, 7055, 756 · plus many other wheel loaders, telehandlers and tractor front loaders equipped with suitable quick-coupler plates.

big bag bucket for CAT wheel loader, big bag filling bucket for Volvo and JCB loaders, telehandler big bag bucket for Manitou and Merlo, bag filling attachment for John Deere and New Holland, NG Attachments BIG BAG BUCKETS for quarries, concrete plants and bulk terminals.
