Rotary Screening Bucket (Drum Type) for Excavators

  • Home
  • Product Details

Rotary Screening Bucket (Drum Type) for Excavators.

NG Attachments Hello! How can we help you?

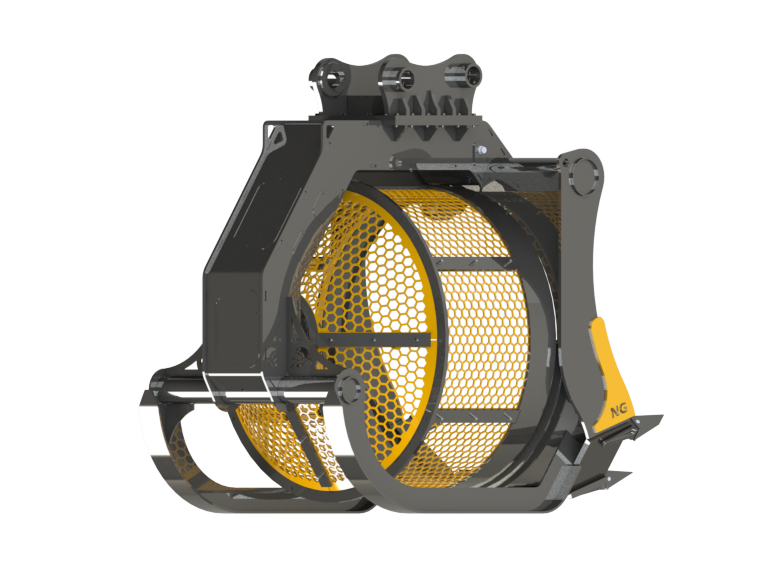

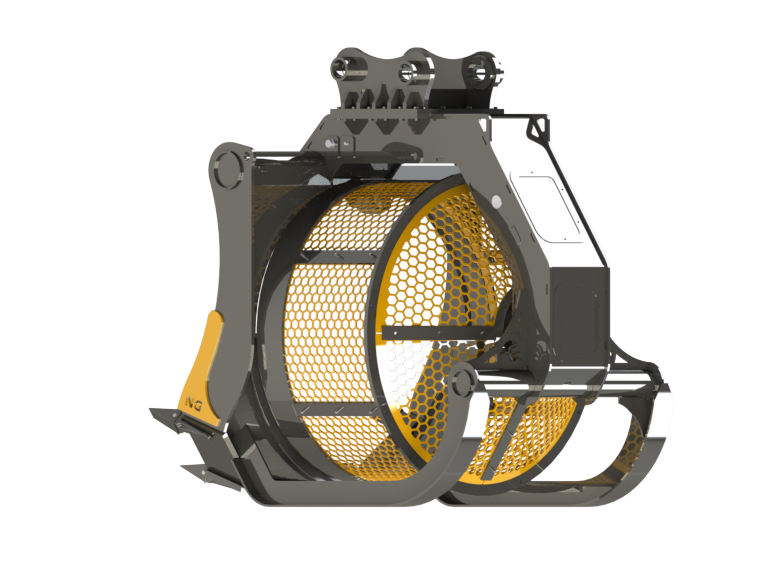

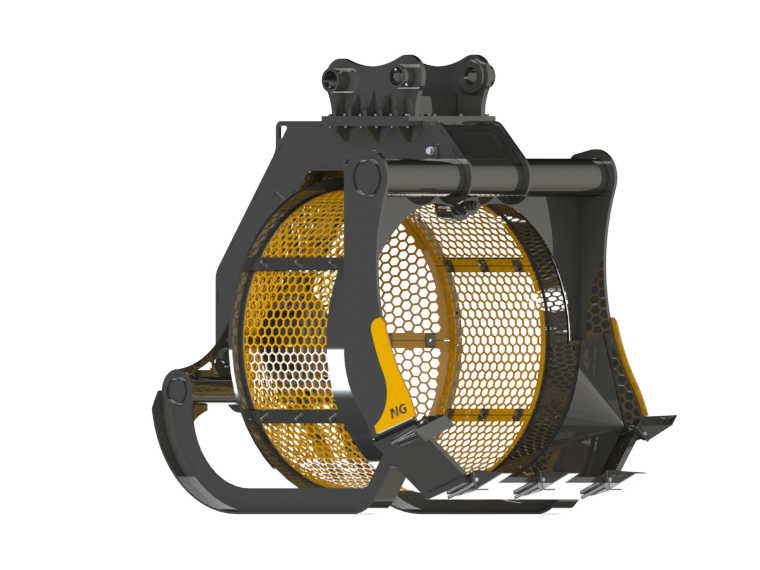

Rotary Screening Bucket (Drum Type) for Excavators 1.5–38 t

Designed for topsoil, compost, recycled aggregates and demolition waste, the rotary screening bucket combines a reinforced drum with adjustable speed and screening options (40–110 mm). Optimized hydraulic flow/pressure protects the carrier and delivers high throughput. CE-compliant, Made in Türkiye.

Drum Screening for Versatile On-Site Material Processing

Robust shell and wear plates increase service life in abrasive materials. Optional Hardox liners and bolt-on side cutters are available.

Adjustable Drum Speed & Aperture Options

Precision screening from 40 to 110 mm

Choose aperture according to material and target fraction. Custom solutions on request.

Technical table (horizontal scroll on mobile)
NG Code Model Machine Class (t) Drum Ø (mm) Speed (rpm) Pressure (bar) Oil Flow (L/min) Weight (kg)
NG-SB-01 SB01 1.5–3 500 35 120 20 158
NG-SB-02 SB02 3.5–5.5 610 60 150 30 245
NG-SB-08 SB08 6–10 810 65 220 60 530
NG-SB-12 SB12 11–18 1000 65 230 80 1020
NG-SB-16 SB16 19–28 1350 65 250 110 1920
NG-SB-18 SB18 29–38 1500 65 250 110 2430

NG Attachments Advantages

  • Made in Türkiye under European CE standards.
  • ISO 9001 quality system with full traceability.
  • Optimized hydraulics matched to carrier flow/pressure ranges.
  • High-strength steels and optional Hardox liners.
  • Custom mountings: pins, ears, quick couplers.
  • Spare parts support: drums, liners, side wear parts, pins.

FAQ

From 1.5 to 38 t depending on model — see the technical table.

Yes — 40, 60, 80, 100, 110 mm and custom options.

Yes — optional Hardox liners and bolt-on side cutters.

15–30 days depending on model; CE declaration and test reports included.
NG Rotary Screening Bucket — high throughput material separation on site.
Compatible with (extended SEO list):
CAT 301.8, 302.7, 303.5, 305E, 306, 308, 312, 313, 315, 318, 320, 323, 325, 329, 330, 336, 345, 349;
Komatsu PC26, PC55, PC78, PC88, PC118, PC130, PC138, PC160, PC180, PC200, PC210, PC228, PC240, PC290, PC300, PC350;
Volvo EC27, EC35, EC55, EC60, EC75, EC140, EC160, EC200, EC220, EC250, EC300, EC350;
Hitachi ZX26, ZX48, ZX55, ZX60, ZX85, ZX120, ZX130, ZX160, ZX200, ZX210, ZX240, ZX300;
Develon (Doosan) DX27, DX35, DX55, DX63, DX85, DX140, DX170, DX210, DX225, DX235, DX300, DX340;
Hyundai R30, R55, R60, R80, HX130, HX140, HX160, HX220, HX260, HX300;
JCB 8018, 8026, 35Z, 55Z, 86C, JS130, JS145, JS220, 220X, 245X;
Liebherr R910, R914, R922, R924, R926, R934, R944;
SANY SY26, SY35, SY55, SY75, SY95, SY135, SY155, SY215, SY235, SY305;
XCMG XE27, XE35, XE55, XE60, XE75, XE135, XE155, XE210, XE215, XE250, XE300;
CASE CX26, CX37, CX57, CX80, CX130, CX145, CX160, CX210, CX235, CX250, CX300;
Kobelco SK17, SK35, SK55, SK75, SK85, SK135, SK140, SK200, SK210, SK260;
Bobcat E26, E35, E45, E55, E60, E85;
Takeuchi TB240, TB260, TB290, TB295, TB2150;
Yanmar ViO27, ViO35, ViO50, ViO57, ViO80;
Kubota U27, U35, KX057, KX080;
John Deere 26G, 35G, 50G, 60G, 75G, 85G, 130G, 160G, 200G, 210G, 250G, 300G.
Other brands and models on request.
