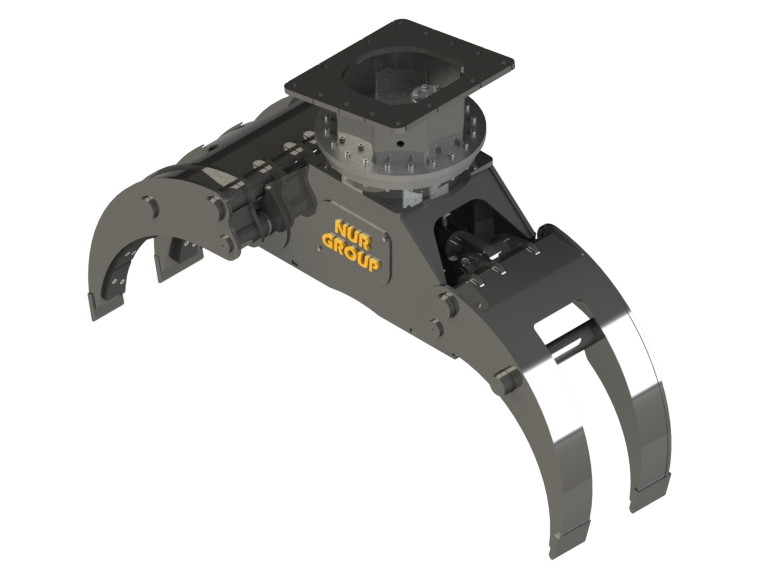

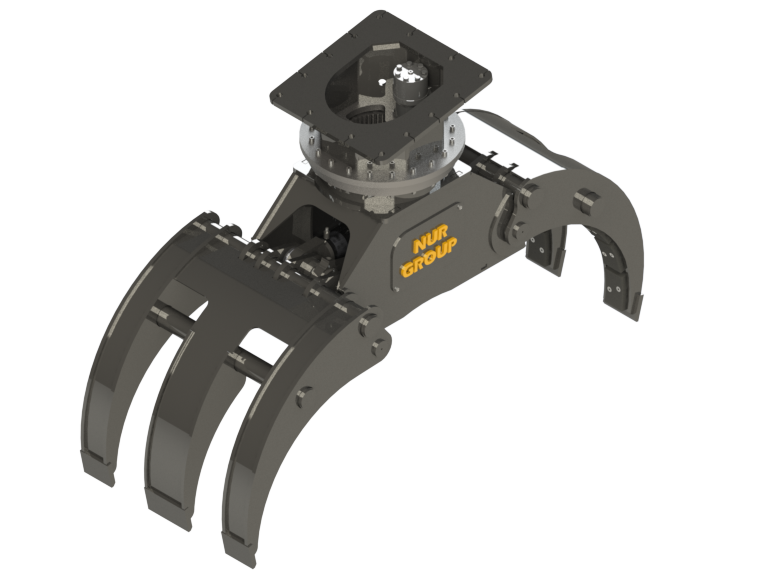

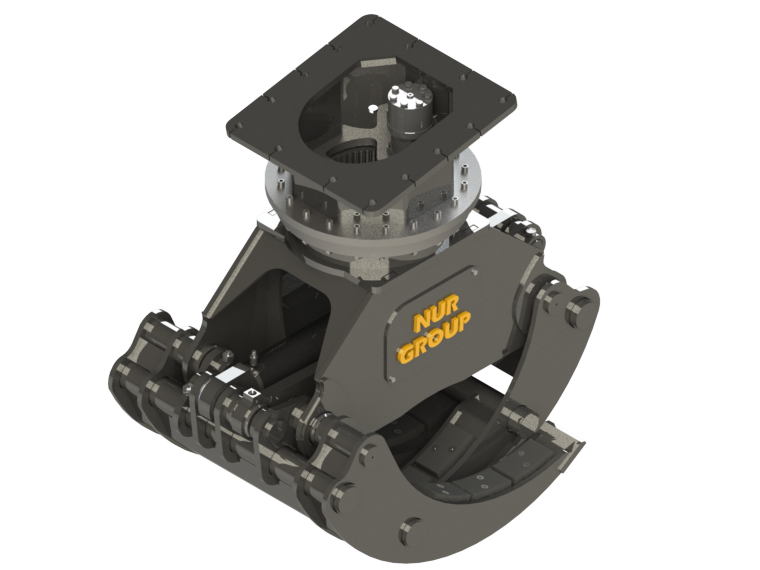

The NG Pipe and Pole Grapple is a specialized excavator attachment engineered for the secure and precise handling of long and cylindrical materials such as pipes, poles, and timber logs. With its durable structure, high gripping power, and advanced hydraulic control, it provides maximum productivity in infrastructure works, power line installations, and pipeline construction projects.
Table is scrollable horizontally on mobile devices.
| Excavator Class (Ton) | Gripping Diameter (mm) | Jaw Opening (mm) | Weight (kg) | Material | Gripping Force (kN) |
|---|---|---|---|---|---|
| 5–8 | Ø 100–300 | 600 | 450 | S355 + HB400 | 25 |
| 10–14 | Ø 150–400 | 800 | 650 | S355 + HB400 | 35 |
| 20–25 | Ø 200–600 | 1100 | 950 | S355 + HB500 | 50 |
| 30–36 | Ø 250–800 | 1300 | 1250 | Weldox 700 | 60 |
| Specification | Value |
|---|---|
| Hydraulic Pressure | 250 – 320 bar |
| Flow Rate | 80 – 150 L/min |
| Hydraulic Cylinder | Double-acting, 2 pcs |
| Connection Type | Pin-on / Quick Coupler |
| Hose Fittings | ½” – ¾” BSP / SAE Standard |
| Optional Features | Rotating motor / Locking valve |
Which excavators are compatible with the NG Pipe & Pole Grapple?
Suitable for excavators from 5 to 36 tons, with pin-on or quick coupler connection options.
Can the grapple handle pipes of different diameters?
Yes, the modular jaw design allows gripping of various diameters and cylindrical materials.
Does NG Attachments offer hydraulic rotation options?
Yes, a rotation motor and locking valve can be integrated upon request.
Is the attachment made from high-strength materials?
Yes, the body is built using S355 structural steel with Hardox® wear plates and Weldox® reinforcements.
