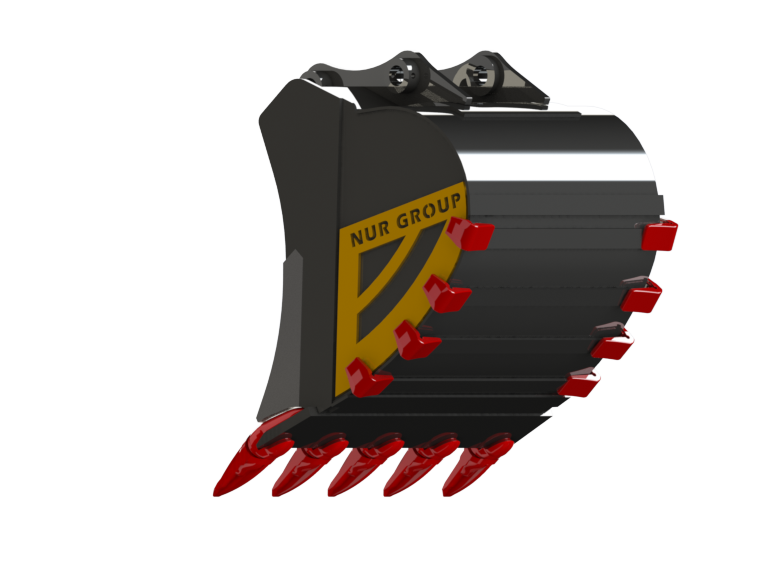

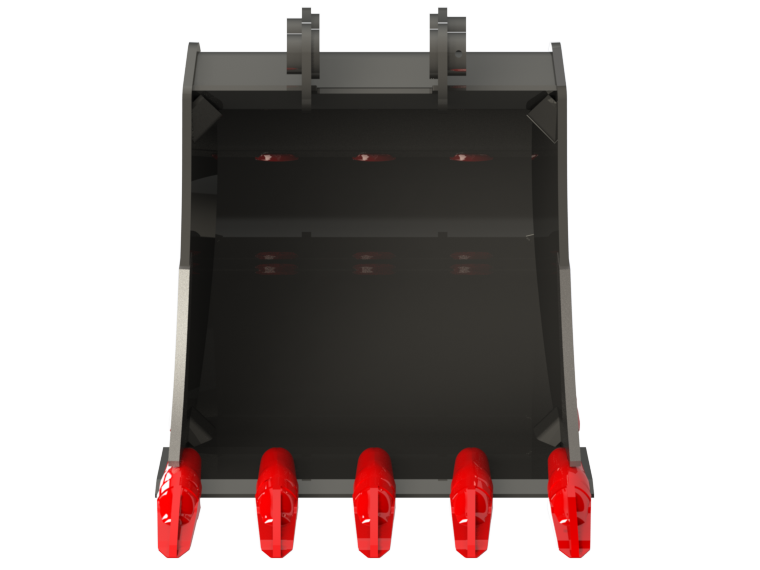

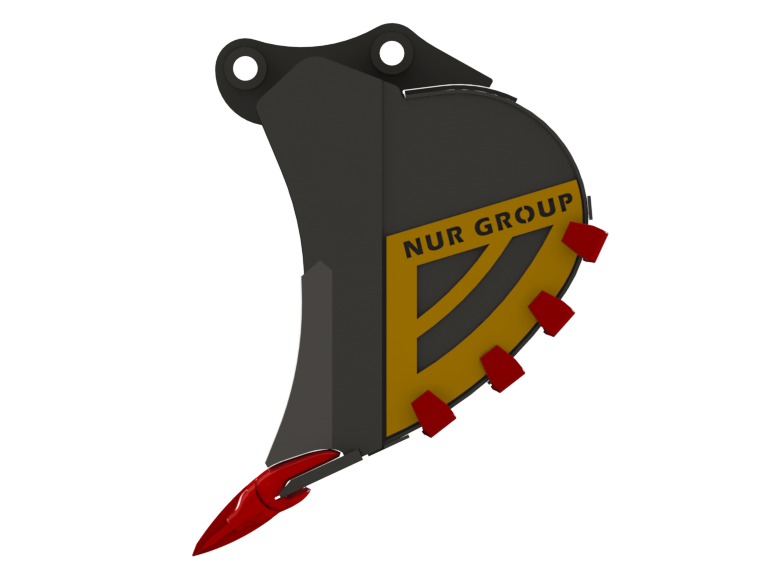

Heavy Duty Rock Bucket

Built for quarry & mining operations, the Heavy Duty Rock Bucket combines a reinforced cutting edge (50–70 mm), deep side wear protection and J-series teeth (J460–J600). Optimized for 26–55 t excavators, it delivers superior penetration in abrasive rock (basalt, granite, shot-rock) while protecting the shell for longer service life.

Excavator Rock Bucket for Heavy Abrasive Materials

Ideal for hard-rock loading in basalt and granite quarries, trenching in hard strata, mining overburden and high-abrasion stockpiles. Optional Hardox wear liners are available for extreme environments.

J-Series Tooth Options for Hard-Rock Loading

CAT J460 / J550 / J600 tooth systems

Choose the tooth size to match rock hardness and productivity: J460-4 (26–32 t), J550-4 (30–40 t) and J600-4 (40–55 t).

Wear Protection & Cutting Edge

Cutting edge thickness by model: 50 / 60 / 70 mm (bevel-ground for easier entry). Heavy side wear plates, optional heel blocks, and bolt-on side cutters extend service life under abrasive conditions.

NG Equipments Advantages

• Made in Türkiye with European quality standards; CE-marked products.
• ISO-based manufacturing (e.g., ISO 9001). Material certificates and inspection reports on request.
• Application-driven design: rock-specific geometry for better penetration & fill factor.
• Material pedigree: high-strength steels; optional Hardox liners for extreme abrasion.
• Custom fitment: pins/ears matched to your excavator; quick-coupler ready (S-type, CW, OEM couplers).
• After-sales support: teeth, adapters, cutting edges, side cutters with fast lead times.
• Global shipping with competitive lead times.

Compliance & Quality Certificates

Products include CE marking. Manufacturing follows ISO-based quality systems (e.g., ISO 9001). Additional documentation (material certificates, WPS/WPQR, inspection reports) can be supplied on request.
